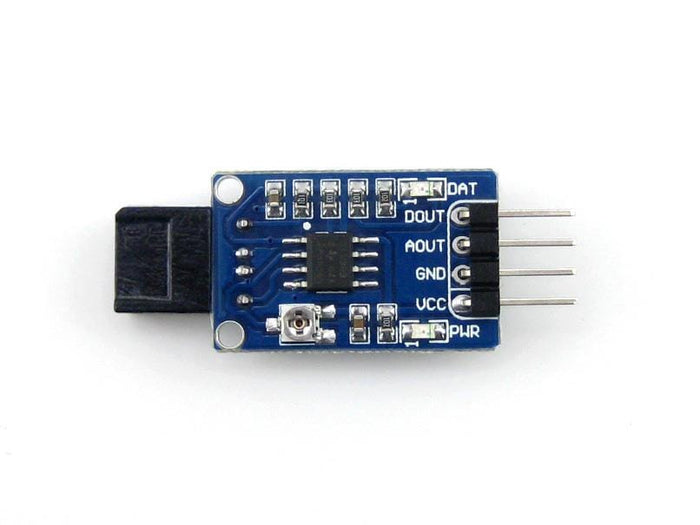

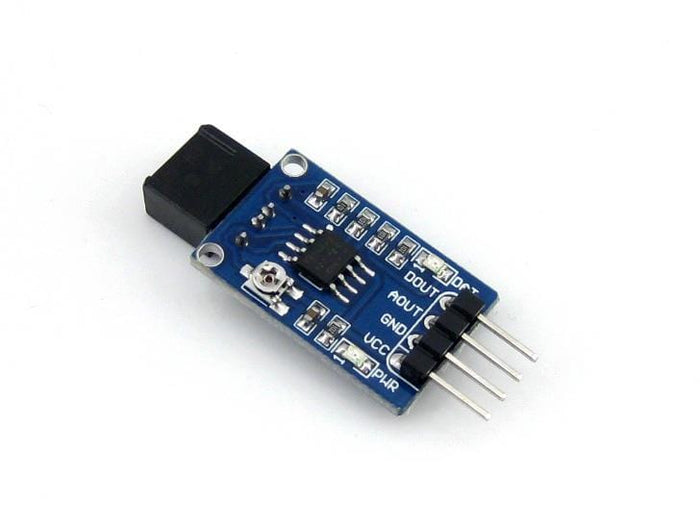

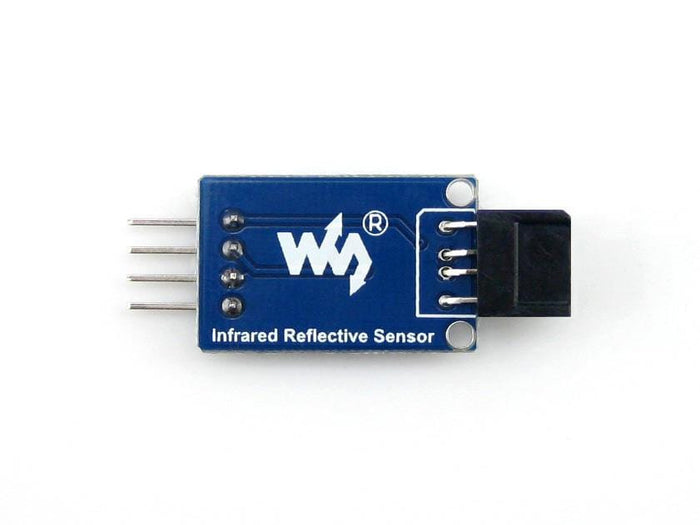

Infrared Reflective Sensor

Infrared Reflective Sensor

✅ Made In USA

✅ Quick Delivery

✅ Cruelty Free

 (88 Reviews)
$2.89
$2.89 $3.80
SAVE 23% Sold out

add_shopping_cart

-

Ordered

local_shipping

- - -

Order Ready

redeem

- - -

Delivered

Infrared Reflective Sensor by Waveshare - The Pi Hut

Infrared Reflective Sensor

$2.89
$2.89 $3.80
SAVE 23% Sold out

Detect lines and other objects with this infrared reflective sensor from Waveshare!

Features

  • Reflective infrared Transceiver
  • Features wide-range voltage comparator LM393
  • Adjustable sensitivity
  • Signal output indicator
  • Sensor only - no cable

Specifications

  • Power: 3.0V ~ 5.3V
  • Dimension: 25mm * 15.9mm
  • Mounting hole size: 2.0mm

Resources

  • Product Wiki

In the case of working with an MCU:

  • VCC ↔ 3.0V ~ 5.3V
  • GND ↔ power supply ground
  • AOUT ↔ MCU.IO (analog output)
  • DOUT ↔ MCU.IO (digital output)
