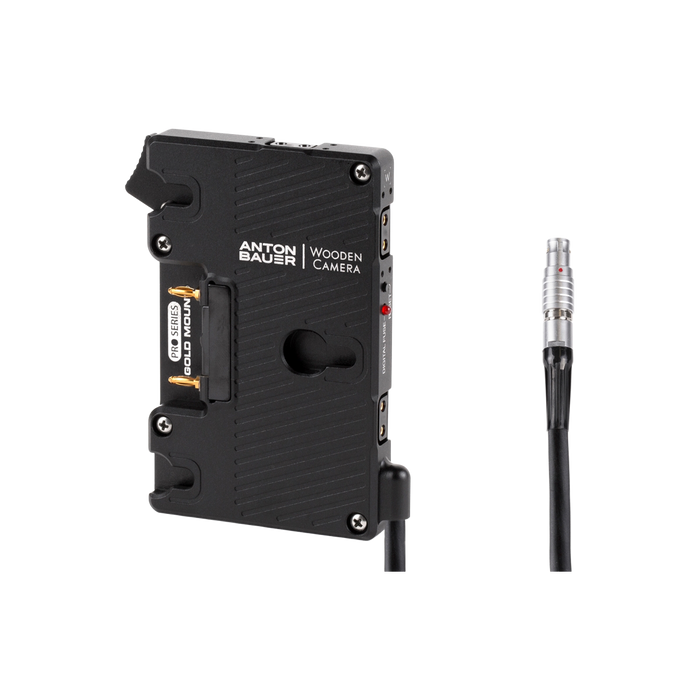

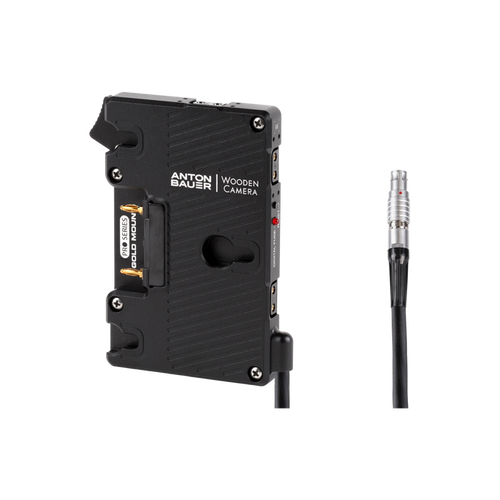

WC Pro Gold Mount (Canon C200, C200B, C300mkII) - Refurbished

WC Pro Gold Mount (Canon C200, C200B, C300mkII) is a metal power plate, created in partnership with Anton Bauer, and has a rugged aluminum body for durability and secure battery mounting and a Canon C300mkII, C200, C200B connector. Features 3x D-Taps for accessory power at battery voltage (12-16V), a digital fuse with reset button, rear cover plate, and captive mounting screws.

Should the user exceed the set current for accessories, only the accessory outputs are disabled leaving the camera running normally. Once the current load has been reduced by either removing accessories or reconfiguring, the reset button can be pressed to enable accessory power again.

12" cable exits the right side of the plate allowing easy insertion into the camera. Custom lengths available up to 6ft for no additional charge. Additional lengths available as needed. Send us an email with your requirements: sales@woodencamera.com

Mounting Options:
To mount the WC Pro Gold Mount onto the C300mkII, C200, or C200B we recommend the below combination:
Battery Slide or Recorder Slide paired with the appropriate Rod Clamp: Rod Clamp (15mm LW), Rod Clamp (15mm Studio), and Rod Clamp (19mm).

Specifications:
Weight: 186g (0.41 lbs)
Dimensions: 146.1 x 76.2 x 19.1 mm (5.75 x 3 x 0.75 in)
